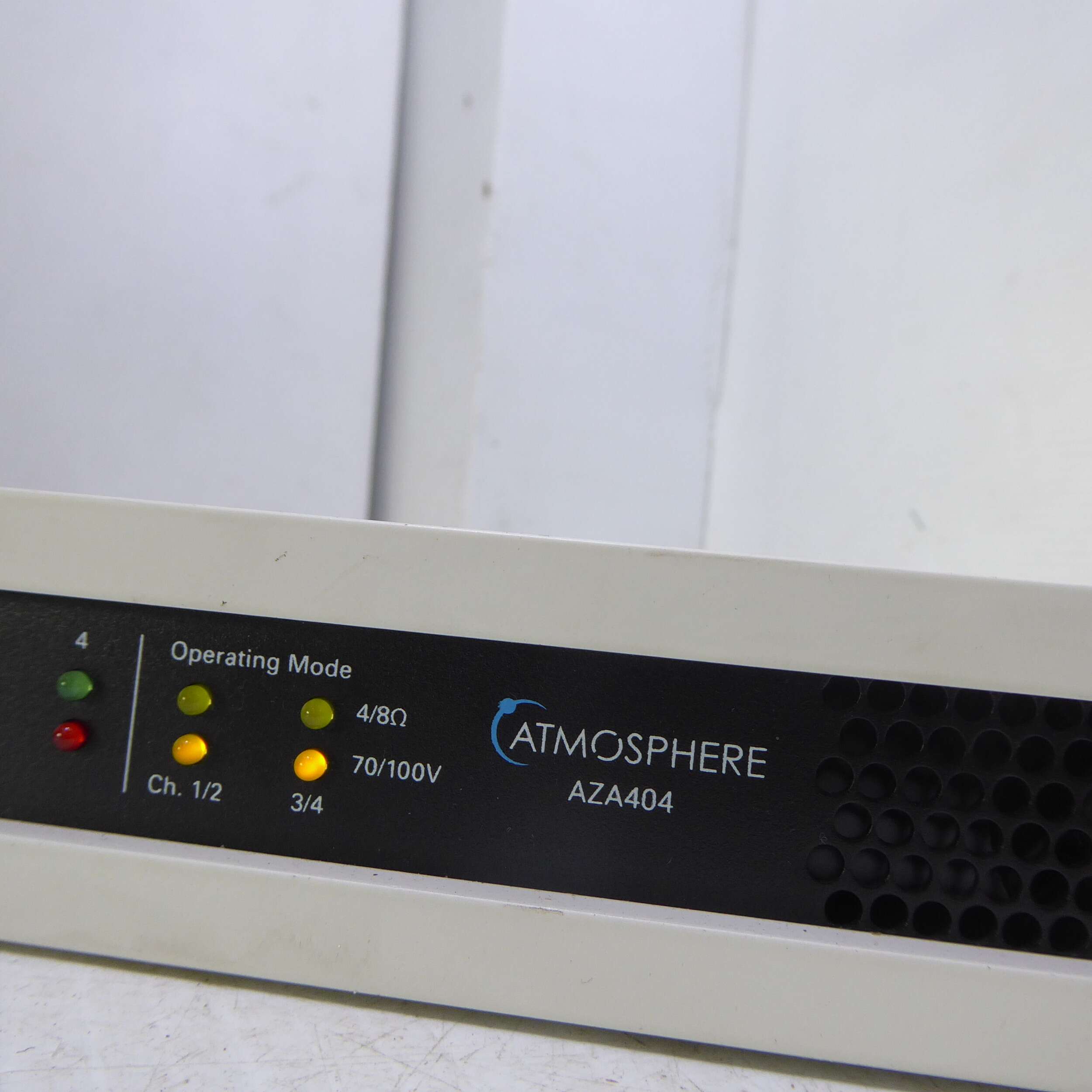

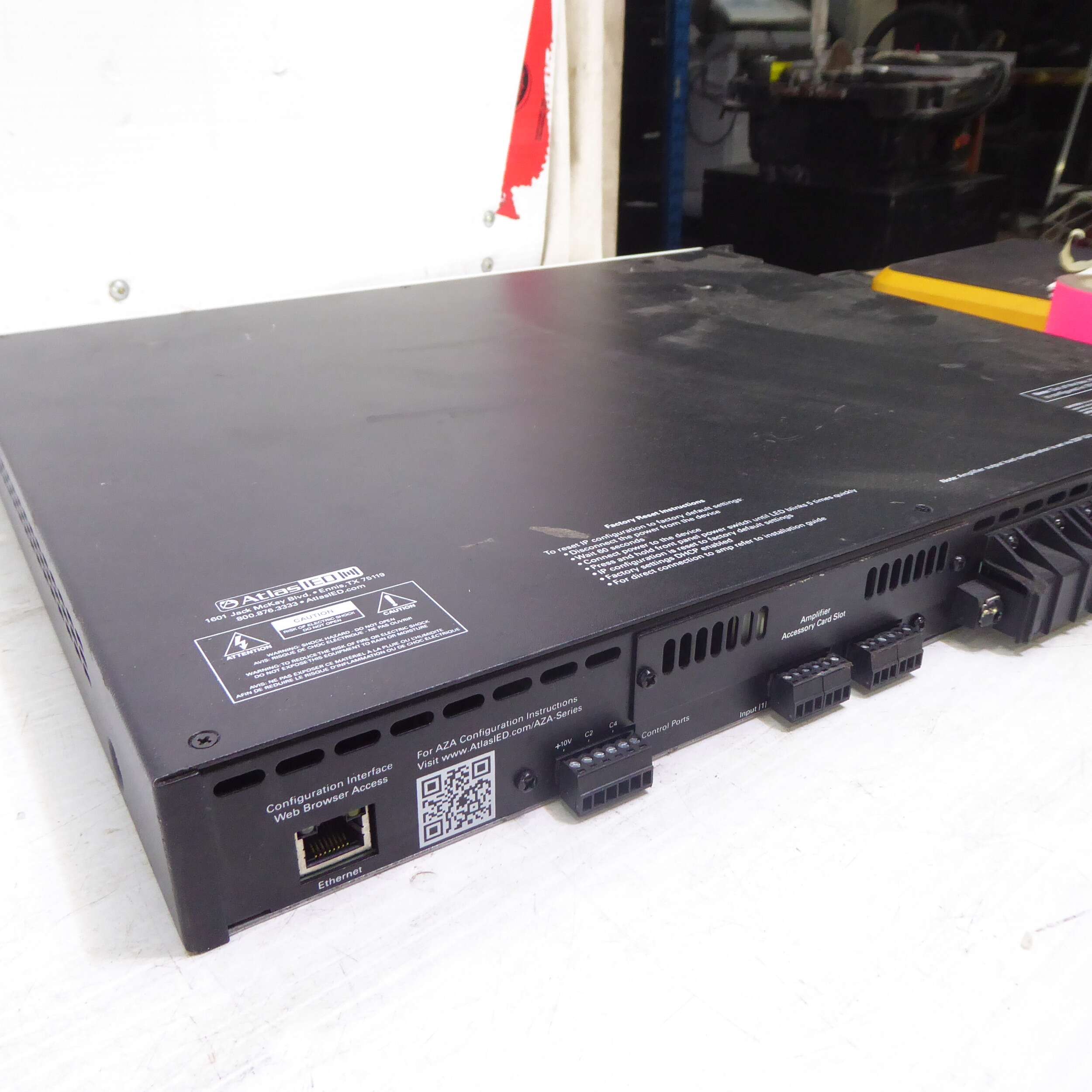

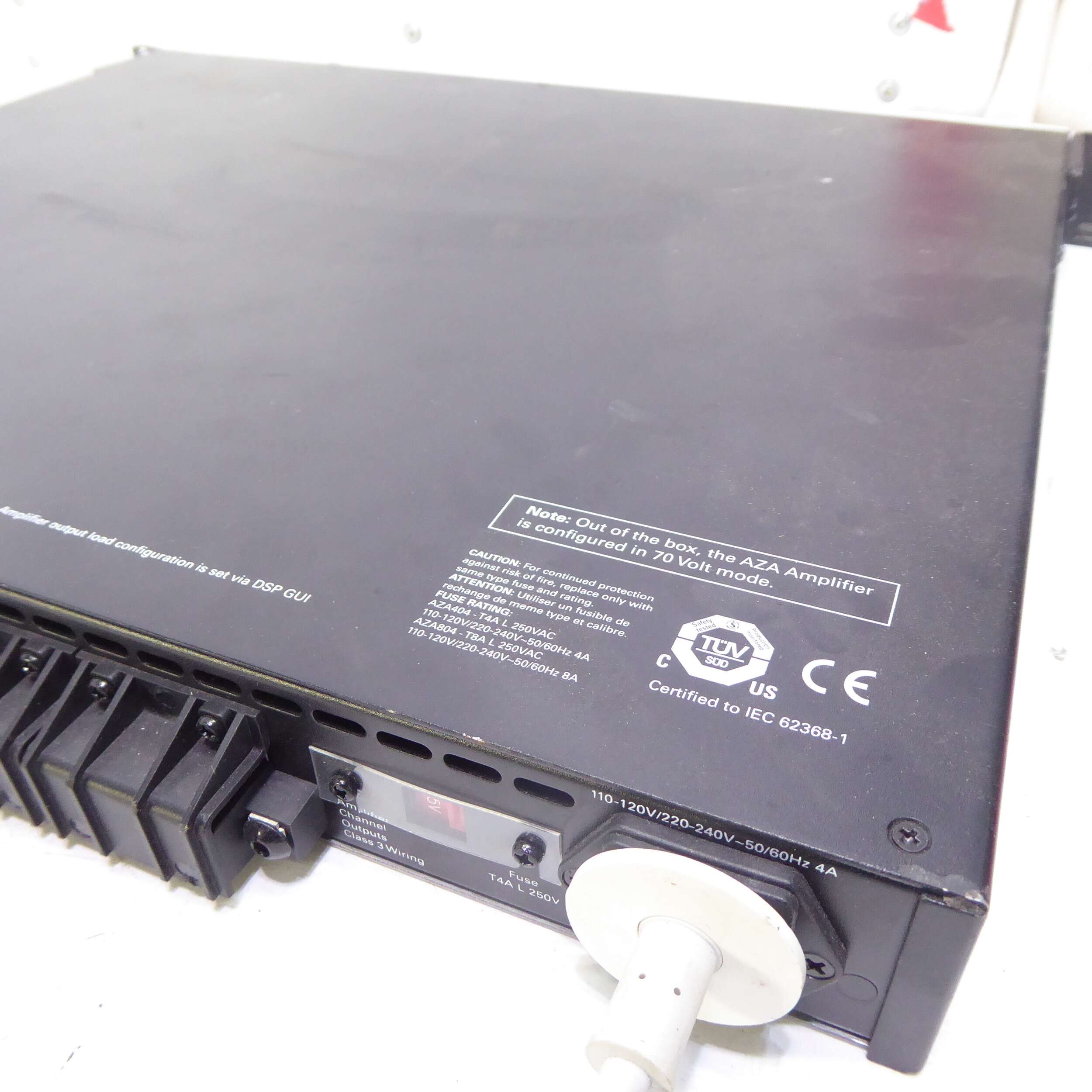

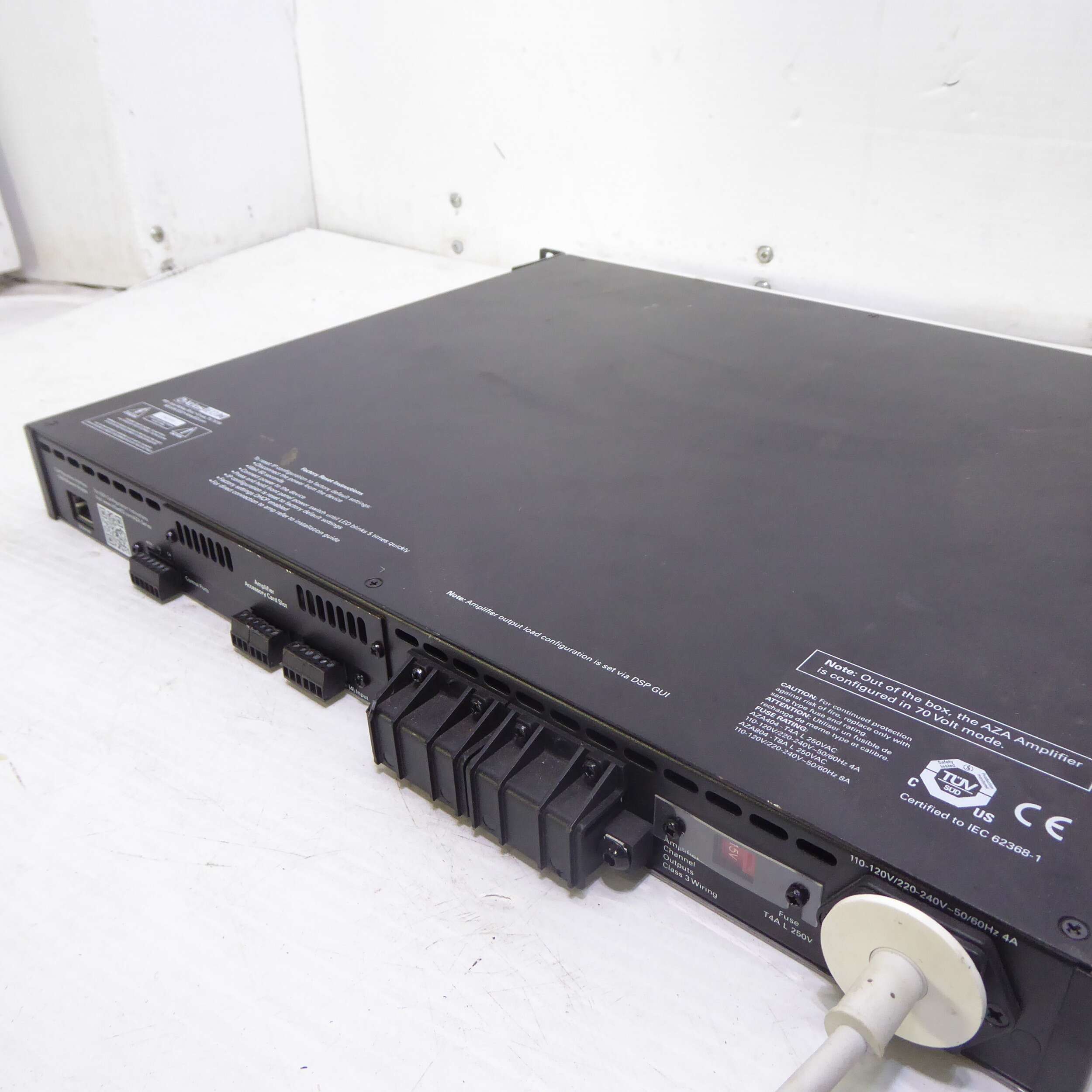

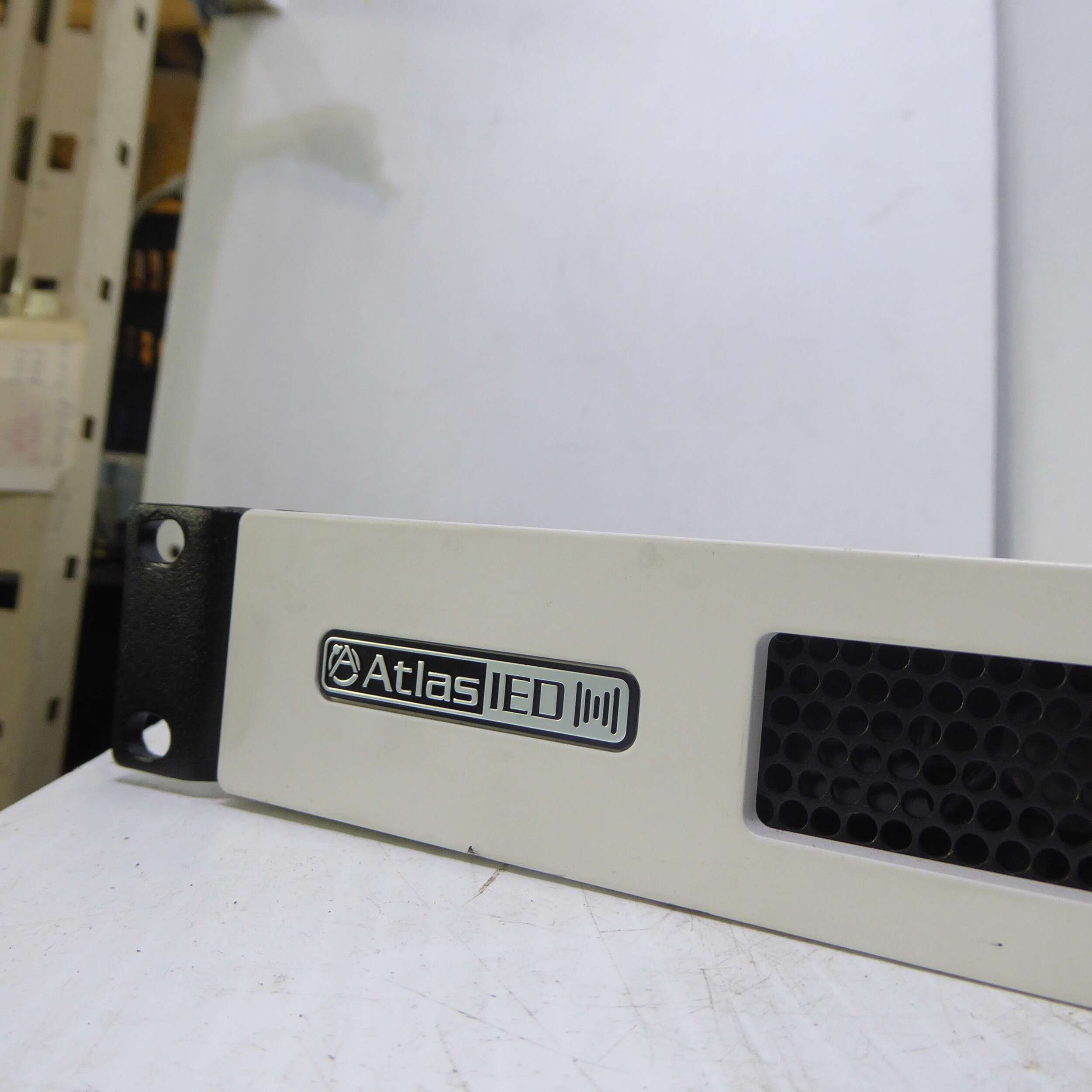

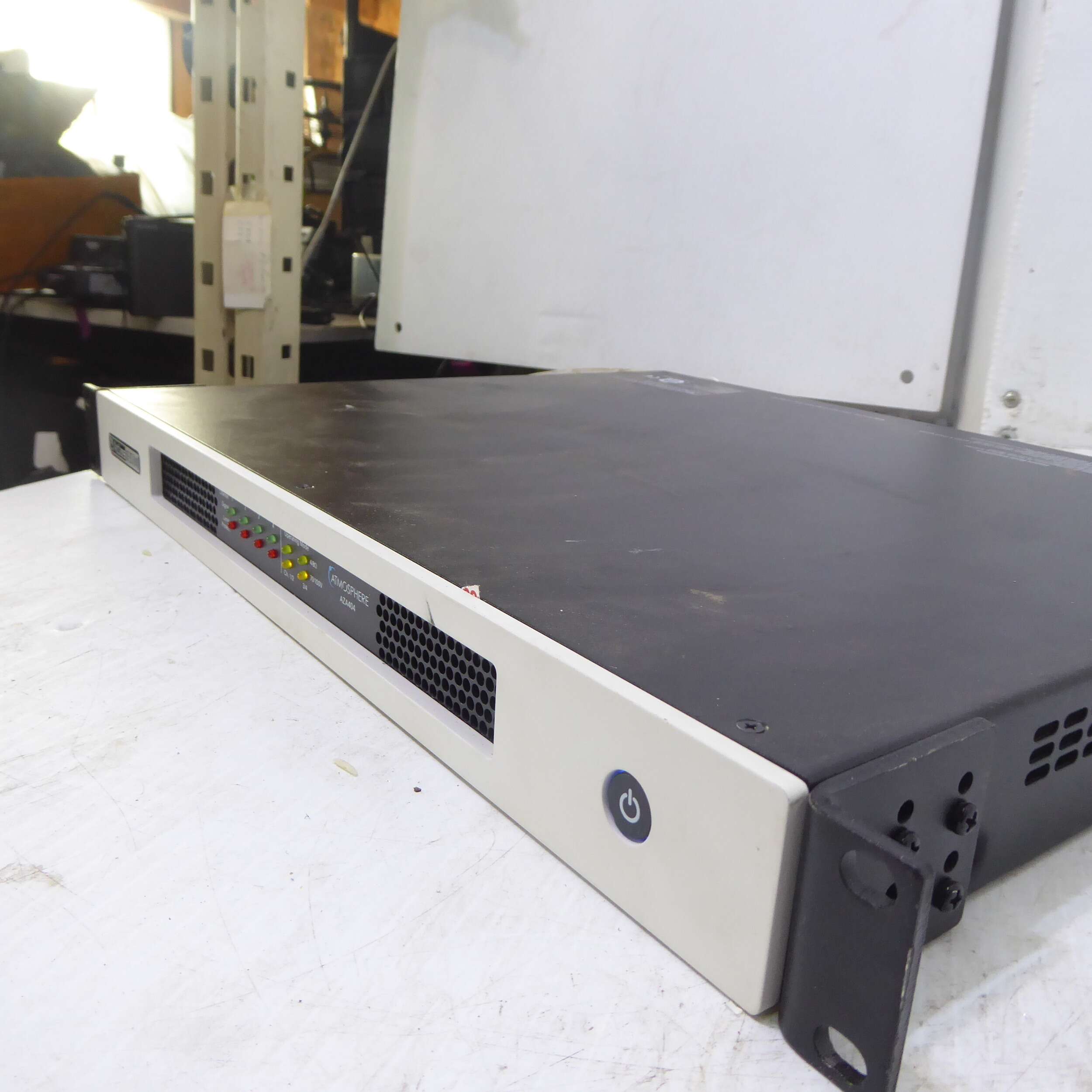

The Atmosphere Atlas IED AZA404
400W Power Amplifier from Atlas Sound is a 4-channel, class-AB power amp designed to interface with the Atmosphere family of products, such as the AZM series of processors, and deliver up to 100W of power per channel into high and low impedance speaker loads including 4-ohm, 8-ohm, and 70 or 100V operation
This Atmosphere power amp is equipped with convenient 24-bit / 48 kHz DSP processing for applying 5-band parametric EQ, output limiting, and adjustable high- and low-pass filters on each output as well as supporting robust matrix mixing functions for customizable routing. The unit also sports failsafe power operation thanks to its auto-voltage sensing PSU, which adapts to any AC voltage source between 110 and 230 VAC.
Features
70V, 100V, 8Ω, or 4Ω functionality, configurable in channel pairs
Up to 100W per channel (4 x 100W)
Four (4) balanced inputs
Web interface to change output modes and additional monitoring/processing
Optional Accessory Card Slot for a Four-Channel Dante™ Receiver (
*It lights up
